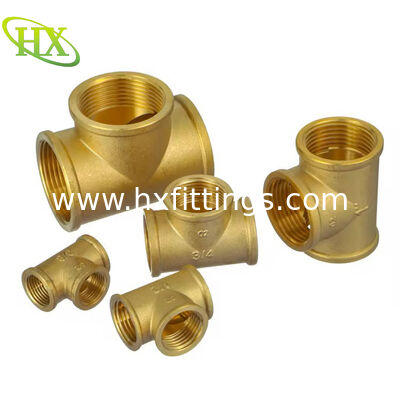

Brass Tee Pipe Fittings with Female BSP/NPT Thread – Sizes 1/2", 3/4", 1" for Low Pressure

These Brass Tee Pipe Fittings are designed with female threads on all three ends, available in BSP or NPT standards. They come in three popular sizes – 1/2 inch, 3/4 inch, and 1 inch – making them ideal for low pressure applications such as water distribution, air lines, and low-pressure hydraulic systems.

The tee configuration allows you to connect three female-threaded pipes or components at a 90-degree angle, creating a branch line from a main run. Manufactured from high-quality brass, these fittings offer good corrosion resistance, reliable sealing, and long service life at an economical price point.

Key specifications include:

• Sizes available: 1/2", 3/4", 1"

• Thread type: Female x Female x Female (FxFxF)

• Thread standards: BSP (parallel or tapered) or NPT

• Pressure rating: Low pressure – up to 150 PSI (10 bar) recommended

• Temperature range: -20°C to 120°C

These brass female thread tees are suitable for:

• Household water supply lines

• Garden irrigation systems

• Low pressure compressed air networks

• Fuel and lubricant transfer (low pressure)

• DIY plumbing projects and repairs

The compact design allows for easy installation in tight spaces. Use with PTFE tape or pipe joint compound on male threads for a leak-free seal. As a low-pressure fitting, it provides a cost-effective solution without sacrificing reliability.
